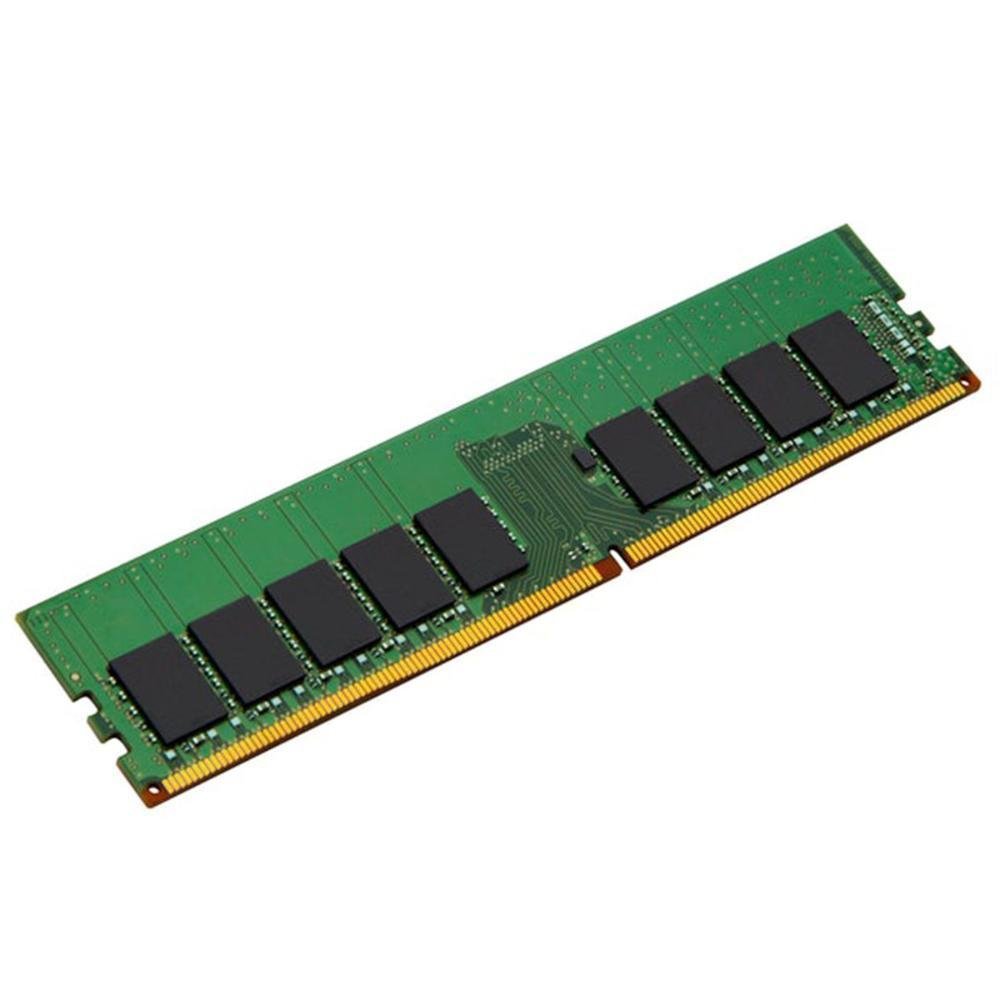

Memória Servidor Kingston, 32GB, DDR4, 2666MHZ, Ecc, Cl19, 2rx8 Hynix C - KSM26ED8/32HC

marca: kingston
modelo: ksm26ed8/32hc

- cl (idd): 19 ciclos
- tempo de ciclo de linha (trcmin): 45,75ns (min.)
- tempo de comando de refresh (trfcmin): 350ns (min.)
- tempo de linha ativa (trasmin): 32ns (min.)
- classificação ul: 94 v-0
- temperatura de operação: 0ºc a +85ºc
- temperatura de armazenamento: -55ºc a +100ºc.

recursos
- fonte de alimentação: vdd = 1,2 v típica
- vddq = 1,2 v típico
- vpp = 2,5 v típico
- vddspd = 2,2 v a 3,6 v
- terminação nominal e dinâmica na matriz (odt) para
dados, strobe e sinais de máscara
- auto-atualização de baixa potência (lpasr)
- inversão de barramento de dados (dbi) para barramento de dados
- geração e calibração de vrefdq na matriz
- dual-rank
- eeprom de detecção de presença serial i2 on-board (spd)
- sensor de temperatura com spd integrado
- 16 bancos internos, 4 grupos de 4 bancos cada
- corte de burst fixo (bc) de 4 e comprimento de burst (bl) de 8
através do conjunto de registro de modo (mrs)
- selecionável bc4 ou bl8 on-the-fly (otf)
- topologia fly-by
- comando de controle terminado e barramento de endereço
- pcb: altura 1,23 ``(31,25 mm)
- compatível com rohs e livre de halogênio

placas compativeis

acer
- altos brainsphere p130 f5
- altos brainsphere r320 f5
- altos brainsphere t110 f5
- altos brainsphere t310 f5

asrock
- fatal1ty x399 professional gaming motherboard
- imb-x1313 motherboard
- imb-x1710 motherboard
- imb-x1711 motherboard
- server 1u-open19-g3.tiny.x86
- server 1u-open19-m3.small.x86
- server 1u1g-c256/2l2t
- server 1u1g-x570/2l2t
- server 1u2e-c252
- server 1u2e-x570
- server 1u2lw-c242 (e3c242d4u)
- server 1u2lw-x470
- server 1u2lw-x570
- server 1u2lw-x570/2l2t
- server 1u2n2g-b550
- server 1u2n2g-c252/2t
- server 1u4lw-c252
- server 1u4lw-x470
- server 1u4lw-x470 rpsu
- server 1u4lw-x570
- server 1u4lw-x570 rpsu
- server 1u4lw-x570/2l2t
- server 1u4lw-x570/2l2t rpsu
- server 4u18n-b550
- server 4u18n-b550/2t
- server 4u18n-c252
- server 4u18n-c252/2t
- server board b450d4u-v1l
- server board b550d4-4l
- server board b550d4id-2l2t
- server board b550d4m
- server board b550d4u
- server board b550d4u-2t
- server board c246 wsi
- server board c246m ws
- server board d1749ntd4u-4q
- server board d1749ntd4u-4t4o
- server board e3c242d2i
- server board e3c242d4m-4l
- server board e3c242d4u
- server board e3c242d4u2-2t
- server board e3c246d2i
- server board e3c246d4m-4l
- server board e3c246d4u
- server board e3c246d4u2-2l2t
- server board e3c246d4u2-2t
- server board e3c252d4id-2t
- server board e3c252d4u
- server board e3c252d4u-2t
- server board e3c256d2i
- server board e3c256d4id-2t
- server board e3c256d4id-nl
- server board e3c256d4id2
- server board e3c256d4u-2l2t
- server board e3c256d4u-2l2t/bcm
- server board x570d4u
- server board x570d4u-2l2t
- server board x570d4u-2l2t/bcm
- trx40 creator motherboard
- trx40 taichi motherboard
- trx40d8-2n2t motherboard
- w480 creator motherboard
- w480d4u motherboard
- w480m ws motherboard
- wrx80 creator / wrx80 creator r2.0 motherboard
- x399 phantom gaming 6 motherboard
- x399 taichi motherboard
- x399d8a-2t motherboard
- x470d4u motherboard
- x470d4u-2t motherboard
- x470d4u2-2t motherboard

asus
- asustor lockerstor 12r pro (as7112rdx)
- asustor lockerstor 16r pro (as7116rdx)
- e500 g5 / sff workstation
- esc300 g4 workstation
- esc510 g4 sff workstation
- p11c-c/4l motherboard
- p11c-i motherboard
- p11c-i/ngff2280 motherboard
- p11c-m/10g-2t motherboard
- p11c-m/4l motherboard
- p11c-x motherboa

especificações técnicas

cor: única
